Thermoform Tooling
We can design and build your next packaging tooling or build it to your designs. We build tools for most thermoformers and resin types.
We stride to build tools that will run maximum cycle time, run 24/7 with minimum down time, be easy to set-up, change over and maintain. We can carefully calculate air fill/evacuation, fluid cooling needs, predict warpage, prevent thin spots, under forming, cold marks, and webbing.
Need heated molds for CPET, heated plugs for OPS and PP, tilt mold for Gabler, or foam compression mold for Irwin or TSL? We have got you covered. Our molds run PET all the way up to 42 shots per minute and PS foam up to 36 shots.
Click on any image to view in high resolution

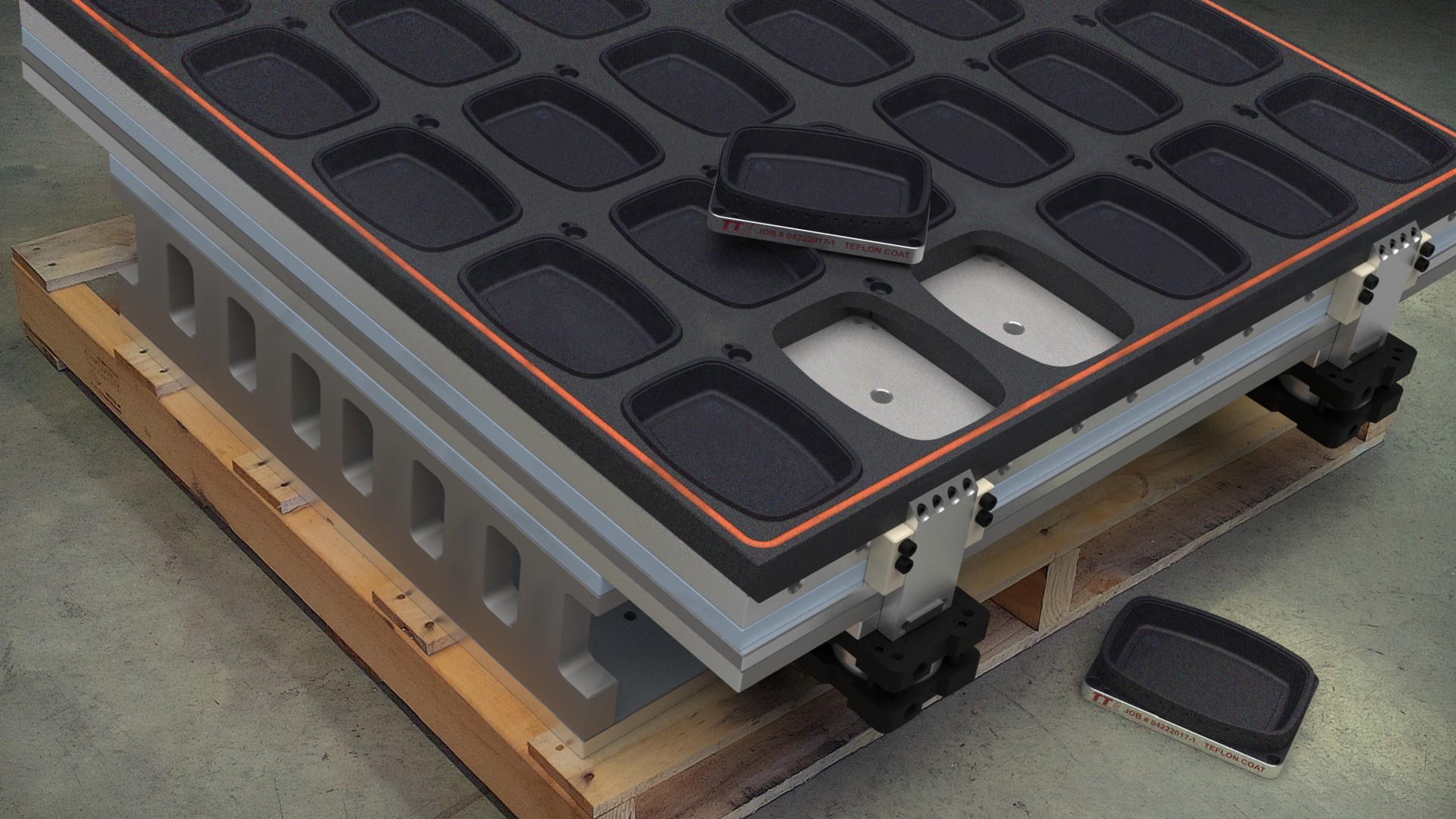

CPET mold example
Size 51.500" x 43.375" wide, heated top and bottom, double insulated, Teflon coated, actuated stripper and clamp plate. Build time: 6 weeks ( included 1 week for coating). Design time: 2 Days
Click on any image to view in high resolution

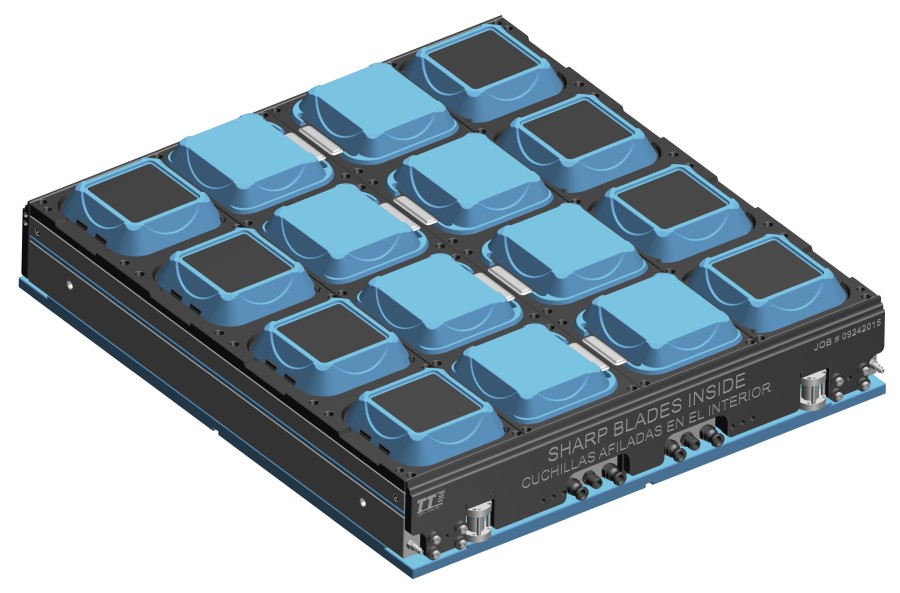

PS Foam mold example
Size 42.250" x 40.500" wide, actuated front and rear sheet clamp, slot cutters, perforated hinge, sidewall venting. Fine Bead Blast finish. Build time: 5 weeks. Design time: 2 Days
Click on any image to view in high resolution

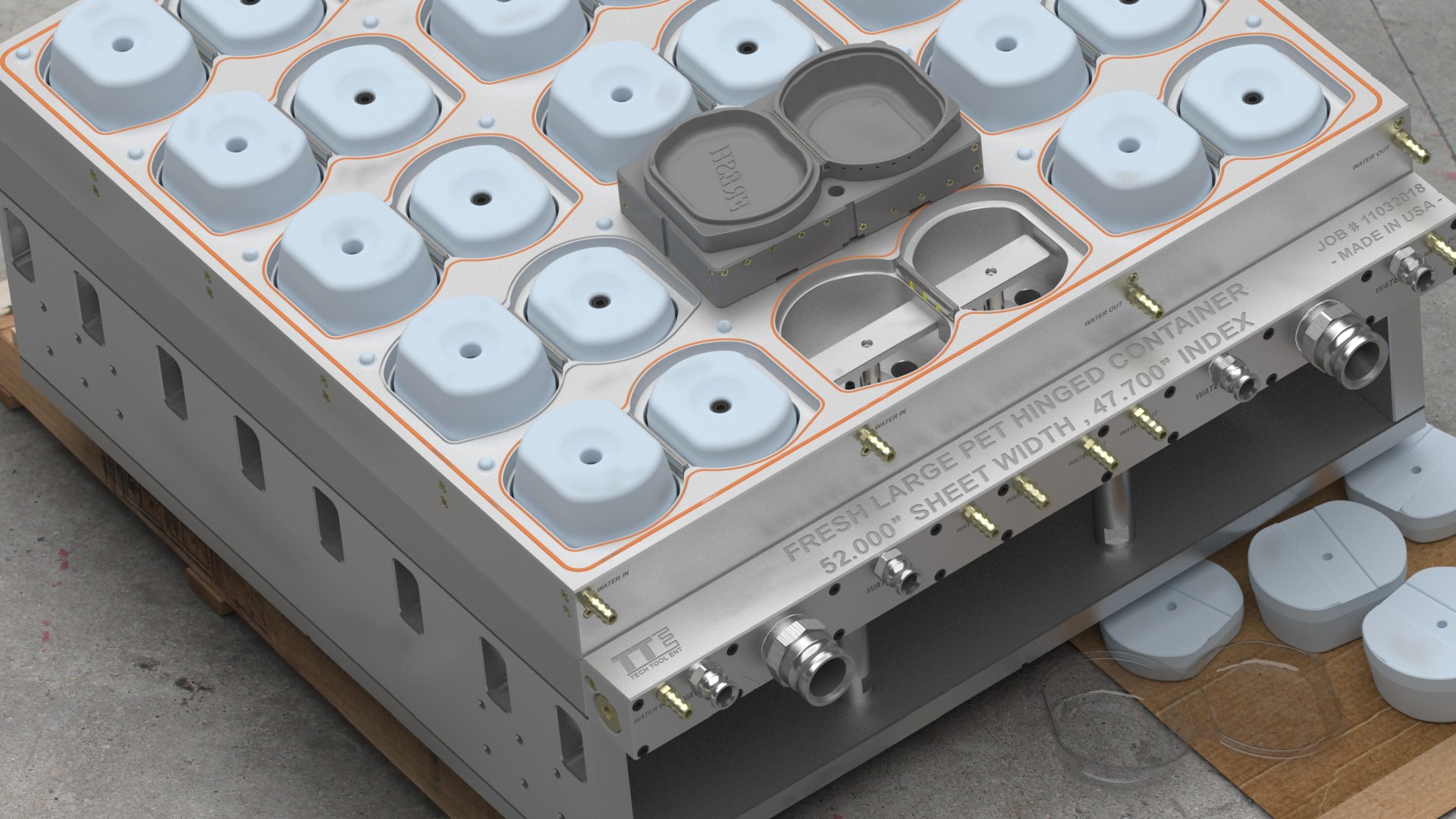

PET mold example

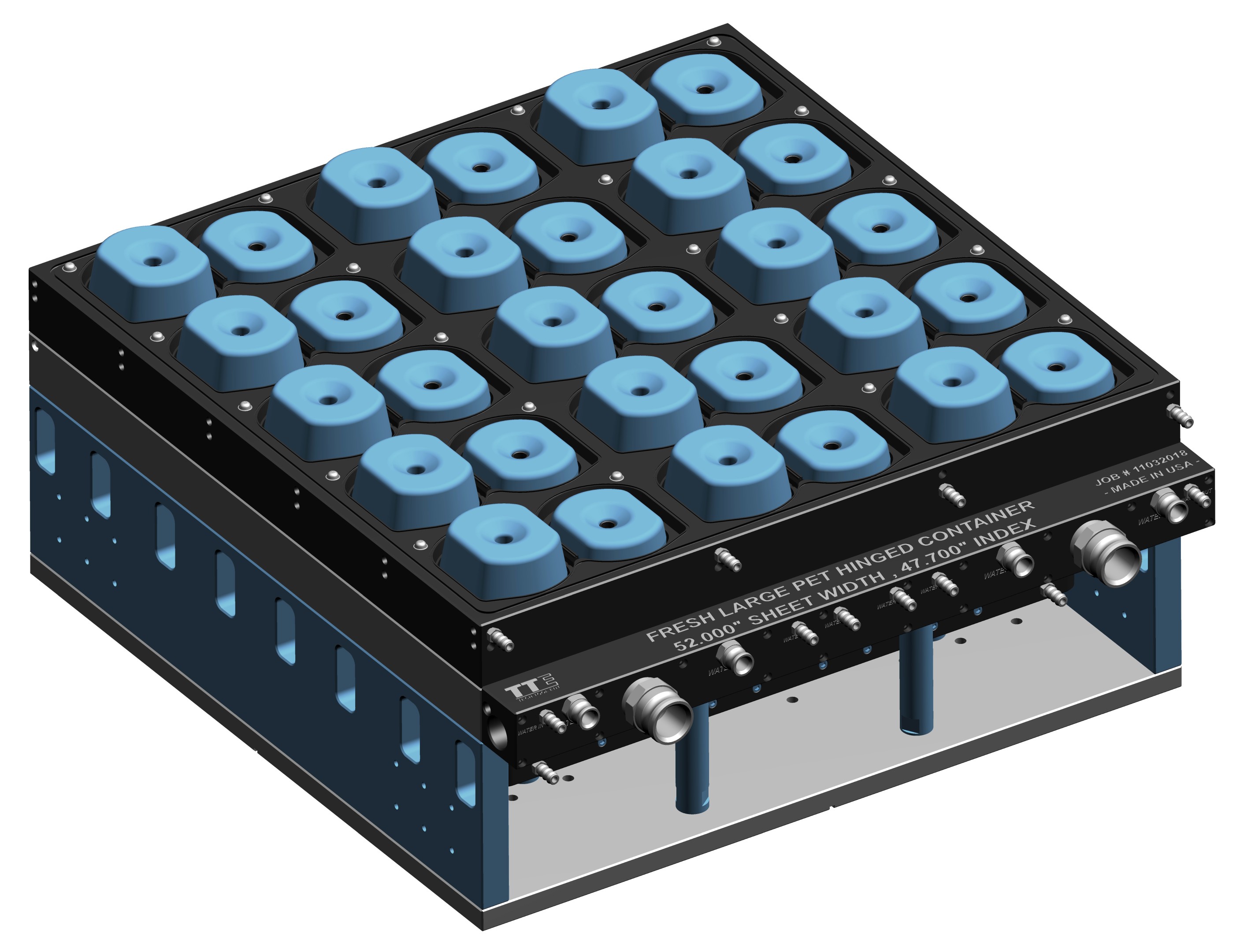

Size 52.750" x 50.000" wide, 3rd motion plug assist, actuated stripper plate, B1X Plugs, Anodized Cavities, running 0.018 gauge PET. Build time: 6 weeks. Design time: 3 Days
Click on any image to view high resolution image
PP mold example
Size 59.500" x 42.000" wide, 3rd motion pressure box, actuated stripper plate, B1X Plugs, Anodized Cavities. Build time: 5 weeks. Design time: 2 Days.

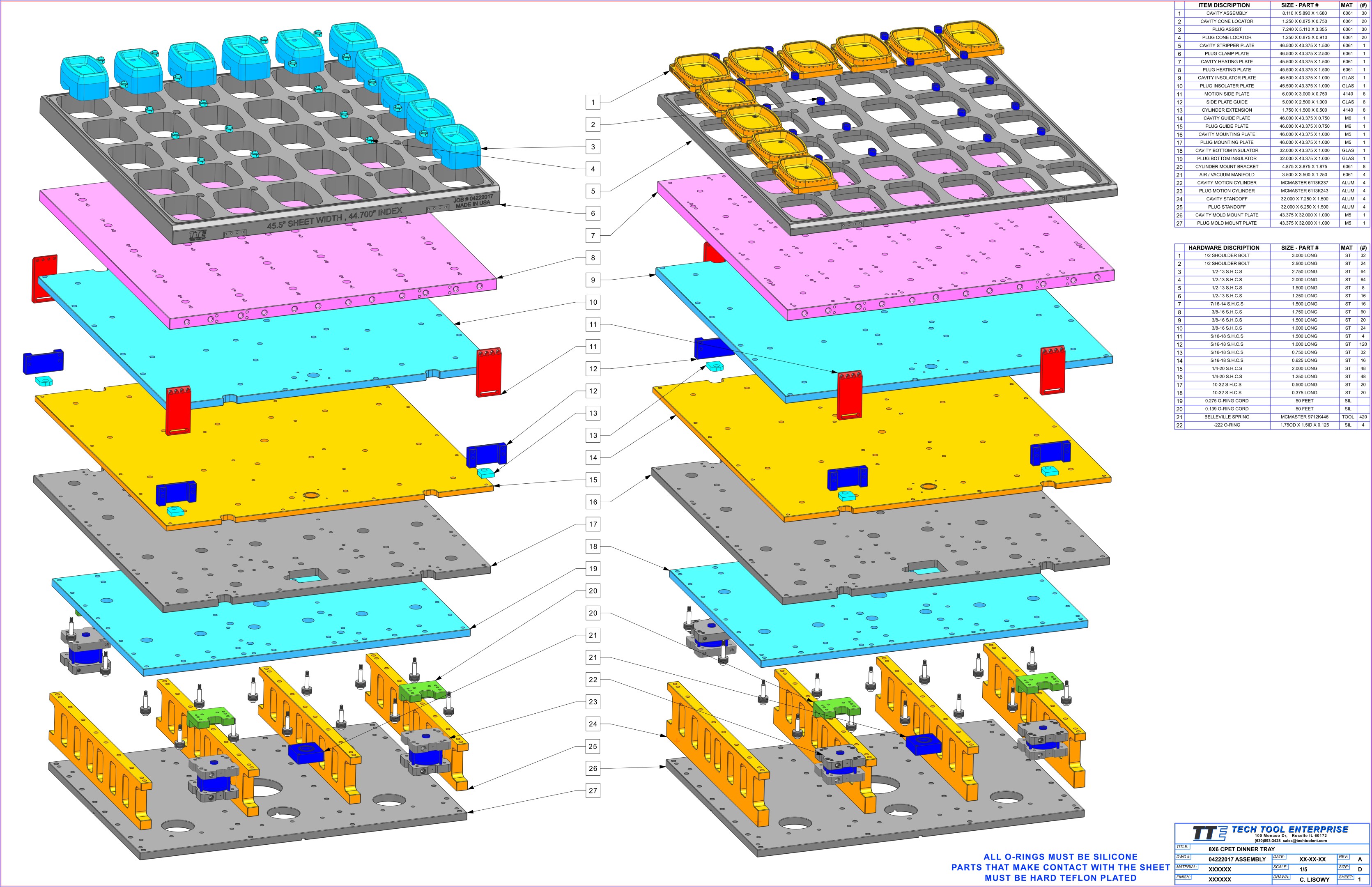

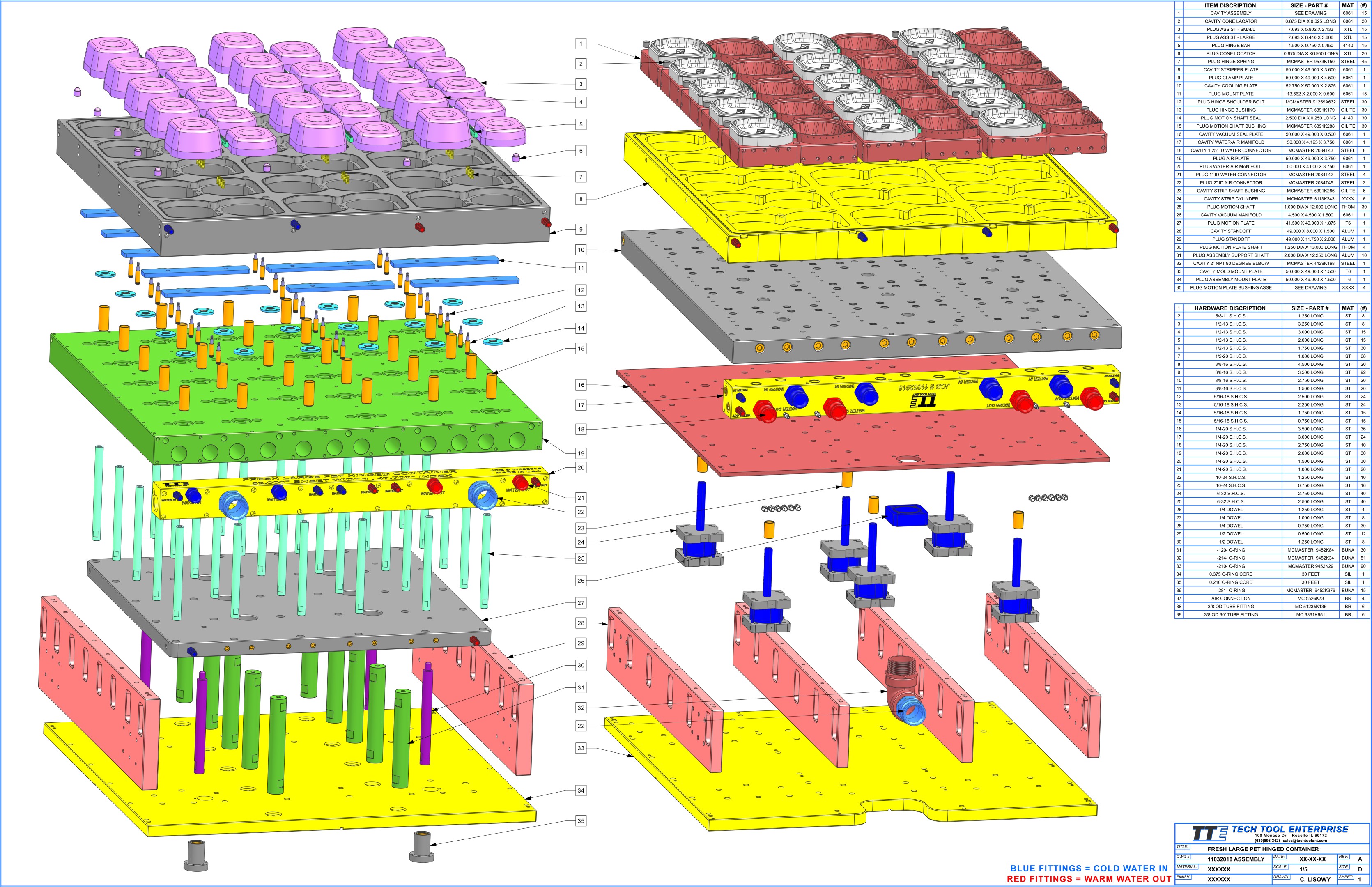

We can accept any CAD file and will provide you with 3D cad models as well as 2D PDF-DXF prints. We can utilize Adobe 3D files for your 3D model viewing in Adobe Acrobat Reader without a need for CAD system. Every tool is shipped with 11x17 book of paper prints for your records. We believe that you own the designs you paid for and we will supply you with any files you wish.
Need product design? We can design your next product or help with your design if desired. We can prototype it in-house before we build a large scale production tool.
Files and prints...

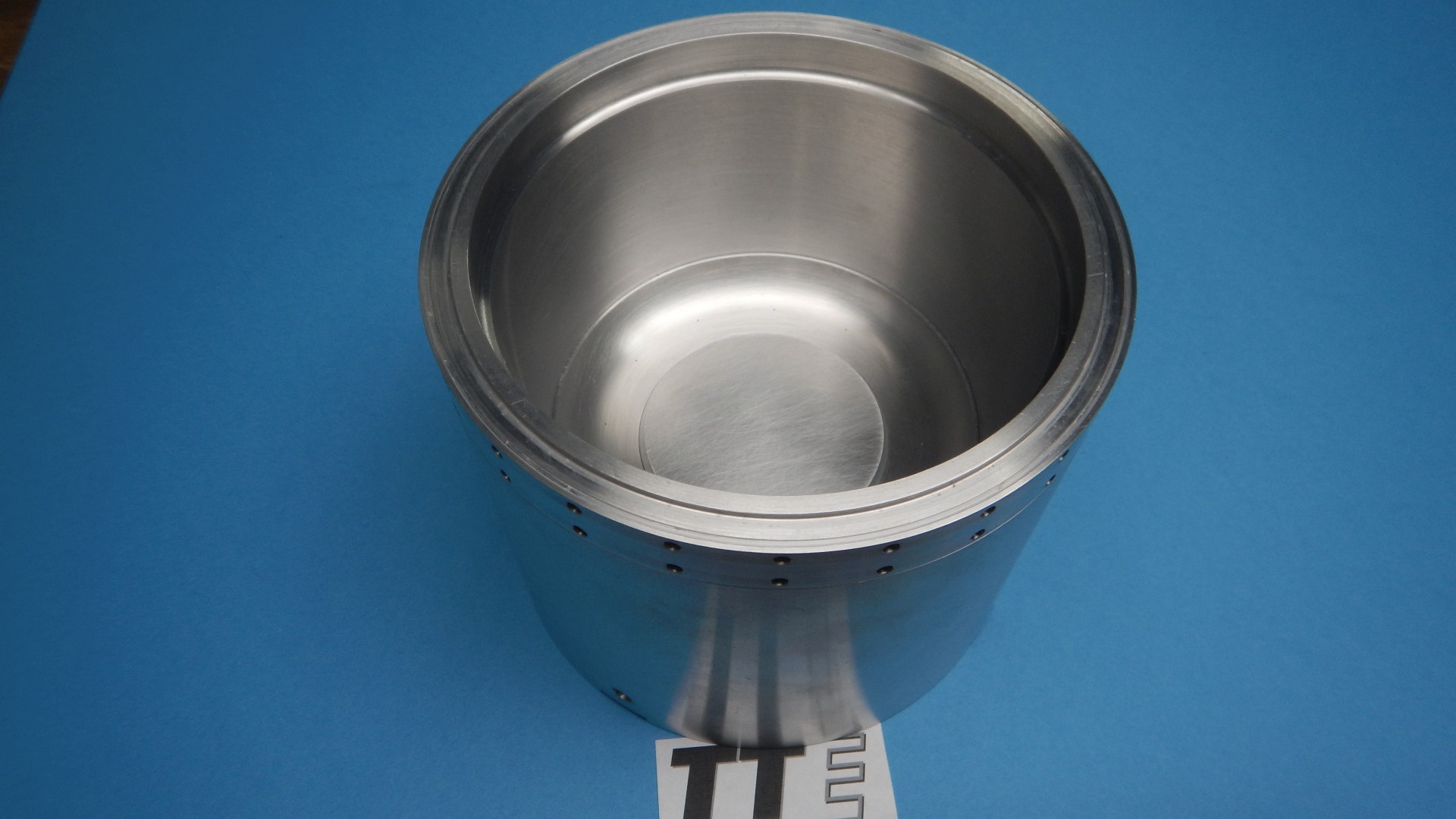

Cavities for thermoforming mold beds

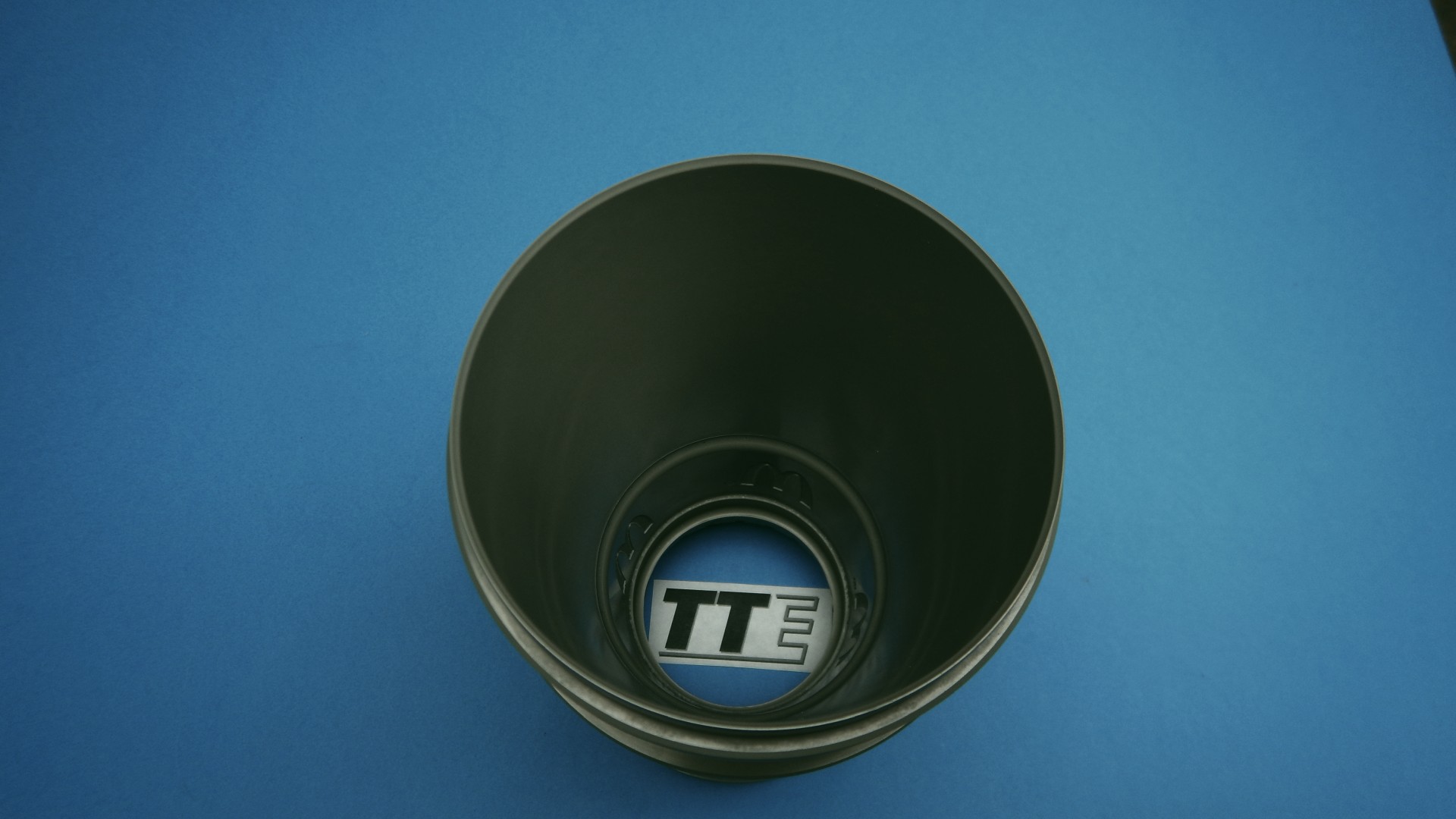

6061 Aluminum, liquid cooled, vented, some anodized, most before plating.
Click on any image to view high resolution image
