We challenge you to find a faster

prototyping shop in the United States

We are known in the industry for delivering finished thermoformed samples or aluminum cavities and syntactic plugs for packaging prototypes fast. We turn around simple prototypes in a matter of hours. Even large complicated products can be done in a 3-5 days.



Need it even faster?



No Problem!  For example: If we get a product file at 10pm on Monday, we can work around the clock.  You can have the 3D design CAD file in your e-mail by 6am Tuesday for approval, and can have the tools in the CNC machine by 8am.  As we are located just 10 minutes from the FedEx O'Hare hub, we can drop your tooling off by 10pm for Next Day AM Delivery (typical turn around is 24 HR). And for even faster delivery, let us form and trim your parts for you and ship them directly to your customer.



REN stock vs Aluminum vs 3D Printing....

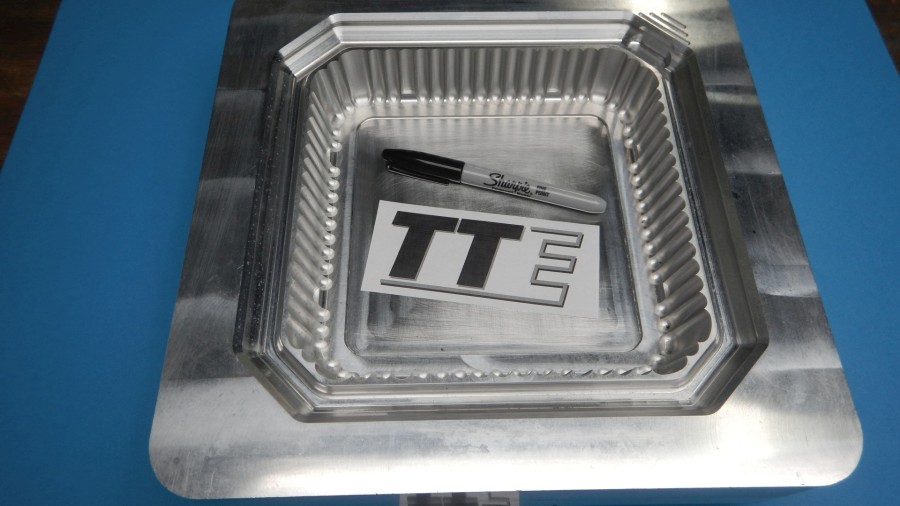

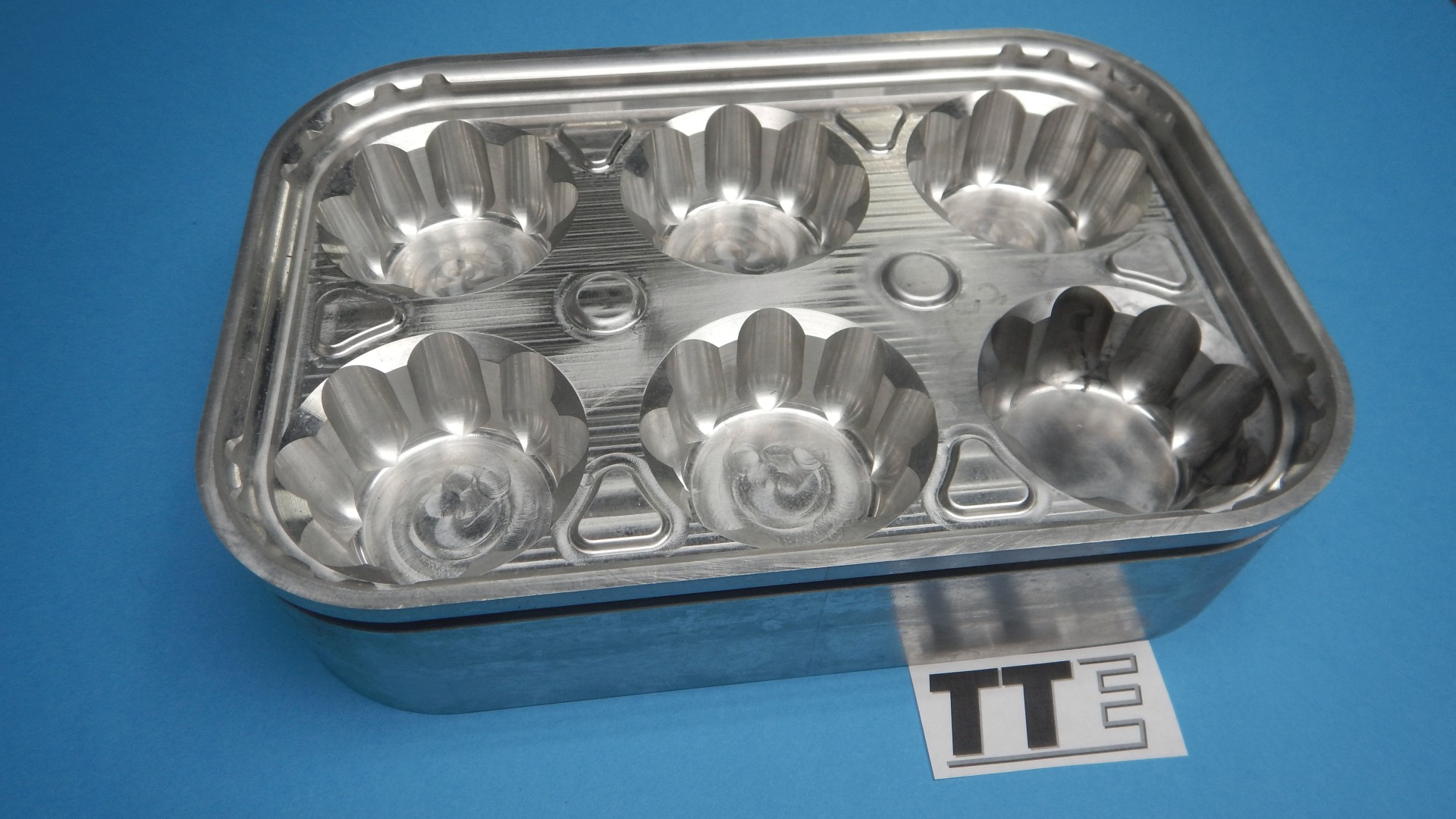

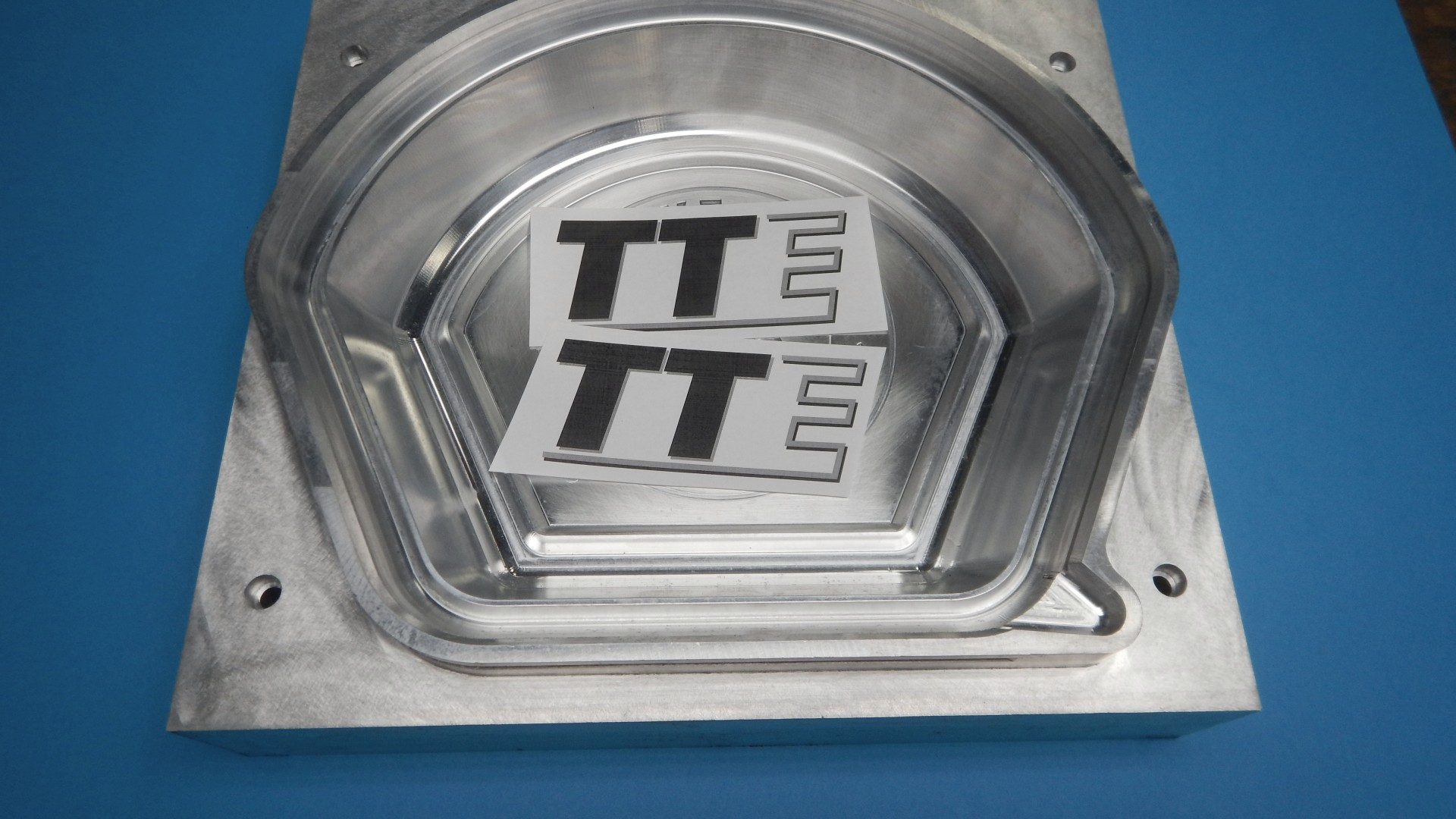

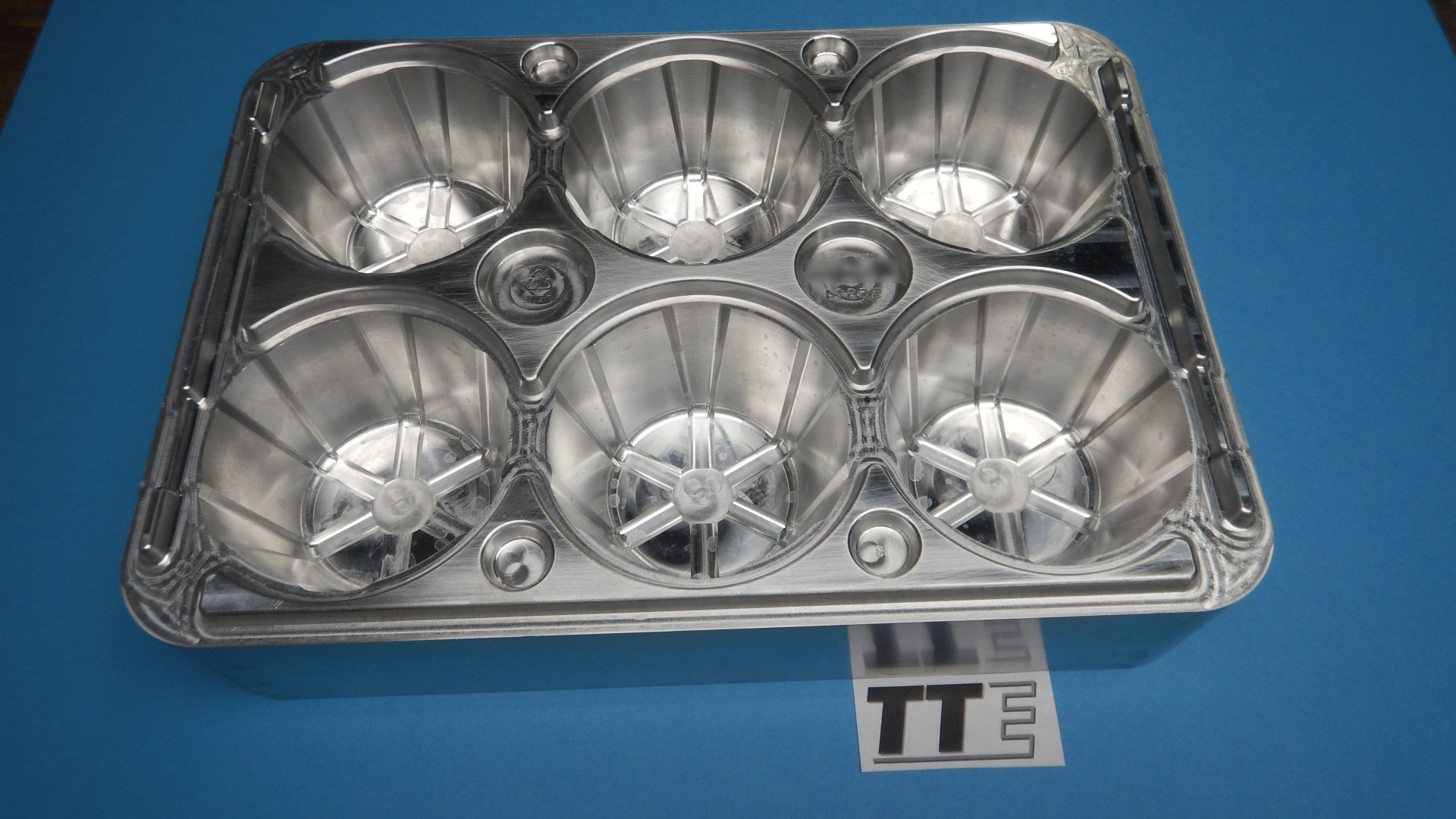

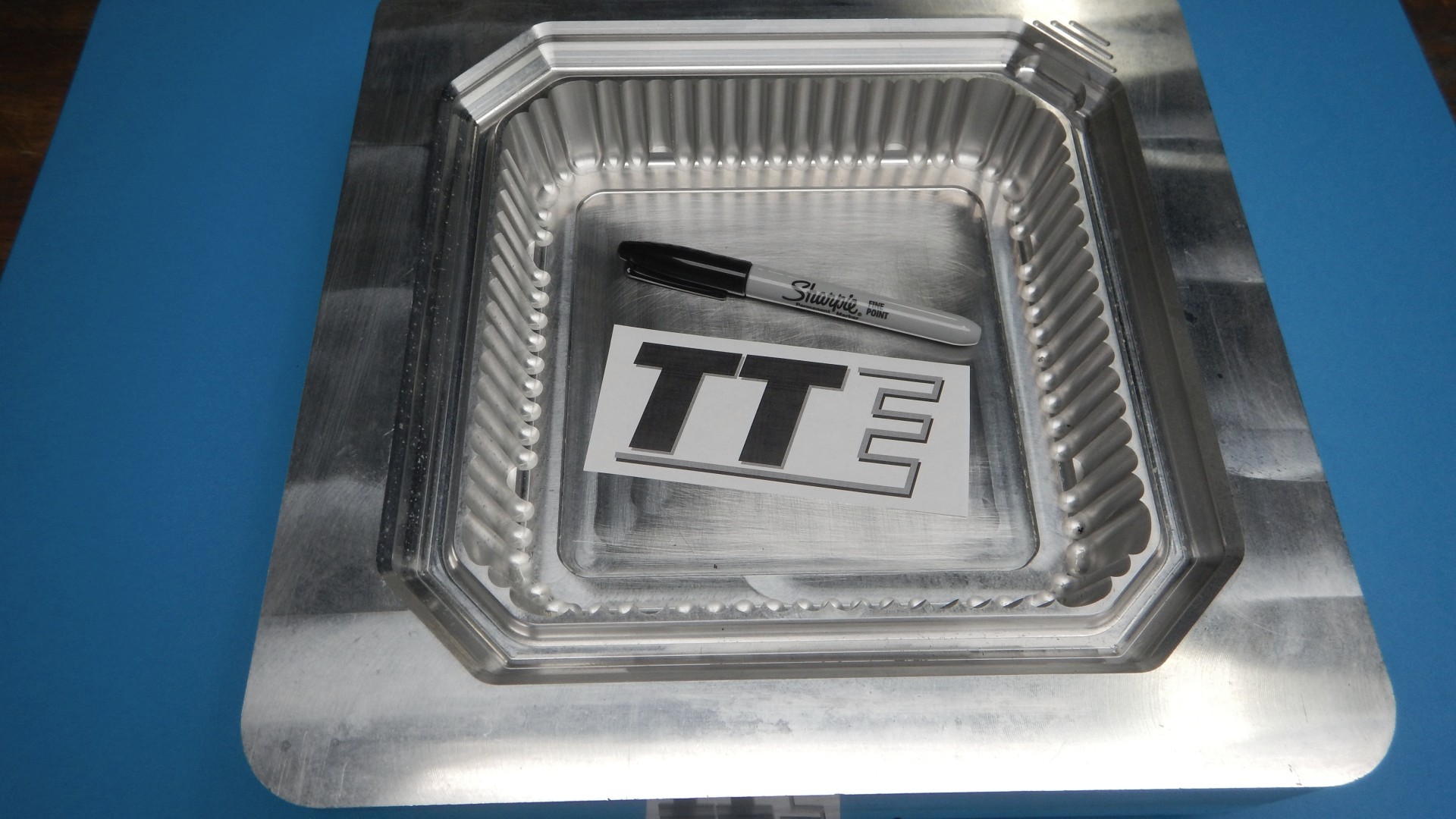

Sure, we can cut cavity in RenShape but we actually prefer cutting 6061 aluminum.  Over the years with special tools and experience we've learned how to cut 6061 just as fast as RenShape or plaster!  REN stock or 3D printed cavities have limited capabilities with textured, cloudy parts.  Whereas aluminum metal tooling always produces better parts, with the ability to run high volume and match what will run in production going forward.

We thermoform and trim the way you will in production....

On our single shot 50 Ton Thermoformer, we can simulate the same conditions you will have in production on a large roll fed Thermoformer. Our machine has:



3rd Motion Plug Assist with 7” of travel

50 Ton press with platen locks to hold 150 PSI form air

Up to 150 PSI form air (40 gallon tank 4 feet from air box)

Vacuum all the way down to 30 INHG (40 gallon tank 4 feet from mold)

26” x 20” x 7”  Maximum product size

Can run vacuum on both sides for PS Foam products

30 Zone Infrared heating elements (both sides of the sheet), X,Y, Z adjustable

Pneumatic 4th Motion plug capabilities

Ability to run solid sheet up to 1/4” and as thin as 0.003

PS/PP foam up to 3/8” thick with metal match male-female

Liquid cooled plates, cavities.  Heated for CPET

Ability to run forming UP or DOWN (only UP with 3rd Motion)

Fully adjustable air box with trap ring insert matched to each product

Fully adjustable cavity box with stripper plate insert matched to each product

Ability to run IN MOLD compression hinges, perforations, cut outs



Trimming....



We implement numerous ways to trim your samples. With our locating technique, we guarantee perfect registration on your product. We can trim it with:



Steel rule die, (fastest, cheapest). Steel rule supplier 6 miles away.

Mill cut using 5 or 3 axis CNC using vacuum to hold parts

Our CNC machine with hot wire attachment (not all resins)

Match Metal die-punch, for multi level trim perimeter (need 2 extra days)

In mold steel rule die trimming

Hand trimmed following thermoformed trim line (few samples)



Venting, Perforations, Shrink Wrapping, Textures....



We offer many additional options for your thermoformed samples. We can cut sidewall vents, plain top vents, vents with perforations, regular hinges, perforation hinges, tamper evident features, swap-able embossed and de-bossed logos, textures, labels, anti-fog coatings, UV coatings, printed shrink wrap and many many more.
